CBI (Customer to Business Interaction) Excel data export

Hi guys,

Recently we had an opportunity to develop an Excel add-in to carry out custom export of data regarding the employees salary payments into a CBI (Customer to Business Interaction) format. This is a standard for the text flat file data formatting implemented by banks for batch data loading. More information could be found on www.cbi-org.eu


As it happens often small companies manage data about their employees in a kind of database which can be MS Access or even MS Excel. The easiest way to handle the task of data management at this level is to use an Excel table where insert salary data in one column. The bank requires the information to be sent in a text file which is specifically structured. the data export in this specific structure has been implemented in the add-in.

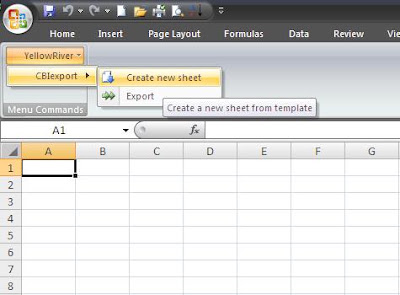

In order to create the table correctly formatted for the add-in to function it’s necessary to open Excel, in the menu YellowRiver/CBIexport find the button Create new sheet.
A new worksheet will be created for you.

The data table whould have the following collumns:

  1. Fiscal code of the employee
  2. His address
  3. ZIP code
  4. Commune he lives in
  5. His Bank name
  6. ID (currently not used)
  7. Name and surname
  8. IBAN (International Bank Account Number)
  9. Issue date
  10. Comment
  11. Amount

Notice that some of the columns are hidden.

Toghether with this information the add-in needs also to know the following information about your company:

  1. Company registration code
  2. IBAN to transfer money to
  3. Payment issuer (generally, the company’s registration code)
  4. Bank’s registration code
  5. Company name
  6. Company address
  7. Region
  8. VAT account

The add-in allows you to have a multiple choice of company registration code and bank’s IBAN in case if you have different company registrations and need to vary the account you transfer money to.

When you have your table filled with data just navigate the same menu and find the button Export. The exported document is ready less than in a second and a window showing it is opened.
You will notice that the generated text file contains all the data from Excel. Now the file is ready to send to the bank on the bank’s web-site.


The installation of the add-in is simple as it is. Just run the downloaded file and select the path where you wish to install the add-in (the file .XLAM). The default path is OK since this is the default MS Office add-ins path.
To activate the add-in you have to go to Excel options\add-ins\Excel add-ins and select ExportCBI.xlam.

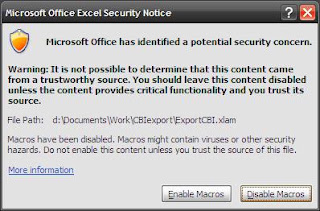

When you do it you might encounter a security warning.
Authorise the macro execution.
As soon as you do it you will find the afore mentioned menu YellowRiver\CBIexport in the Add-Ins tab of Excel.


The add-in is not protected so you may change it. This add-in is not universal so if you need any custom changes feel free to contact us.
The add-in’s language is Italian. But I tried to give the English names for the fields. You can easily change them.
The application is freely available on our web-site WWW.YRIVER.IT in the chapter SOLUTIONS where you can also find out how else we can make Excel work for you.
Download it ExportCBI.exe.
Feel free to contact us if you have any ideas, suggestions and proposals.
